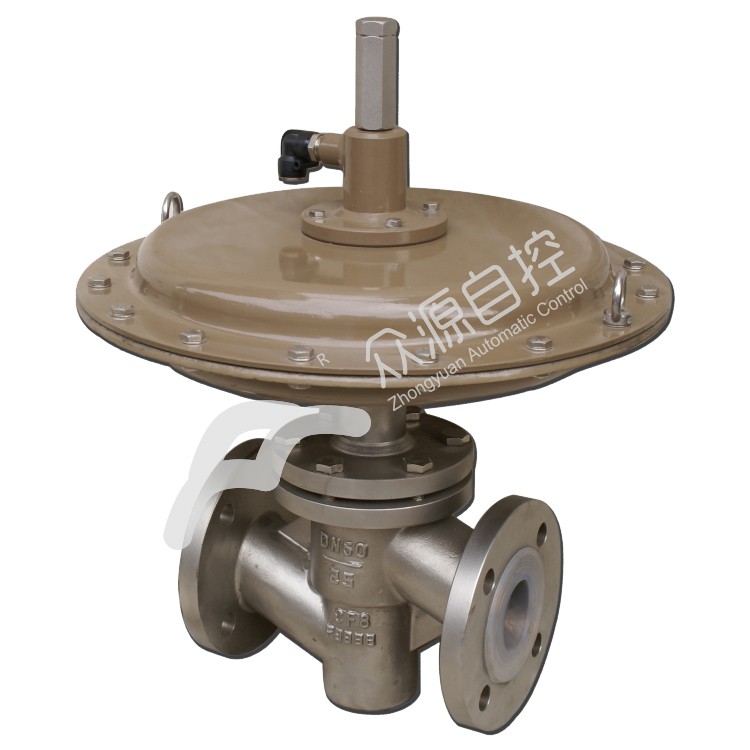

ZZV(C) Series Self-operated Differential Pressure Regulating Valve

· Compact structure with S-shaped flow path and low pressure drop
· Wide adjustable range and high-precision flow characteristics

· Excellent dynamic stability, low noise, and anti-cavitation design

· Large spool guide area enhances vibration resistance

· Complies with GB/T4213-2008 standard

· Suitable for high-temperature and low-temperature fluid control

产品详情

流体掌控间，众源展非凡

产品特点
选择阀体部件
结构型式
特殊规格

产品特点

· No external power required, compares process line pressure changes with signals to balance medium force and actuator output force, achieving stable pressure/differential pressure
· ZZCP differential pressure valve: Balanced single-seated valve for precise micro-pressure control with stable pressure, high precision, and excellent sealing. ZZCN differential pressure valve: Double-seated valve with large flow coefficient, configurable through forward/reverse plug installation
· ZZVP micro-pressure valve: Adjustable setpoint during operation, suitable for industrial furnace fuel gas control, petroleum product tank protection gas regulation. Adjustable range: 50mm.WC to 0.1MPa
· Widely used in industrial combustion systems: Controls two media (e.g. gas/air flow ratio) for optimal combustion; Hydrogen-cooled generator sealing oil systems: Maintains oil/gas pressure differential for reliable sealing. When low-pressure port vents to atmosphere, functions as micro-pressure valve

选择阀体部件

Plug type	Single-seated (ZZVP, ZZCP), Double-seated (ZZVN, ZZCN)
Function type	Pressure reducing (Type B) and pressure relief (Type K)
Nominal diameter	DN15mm-300mm (1/2" - 12")
Flow characteristics	Quick opening
Regulation accuracy	±5-10%
Temperature limit	≤160℃
Nominal pressure	PN Series: 0.1,1.0,1.6MPa; Class Series: Class150
Connections	Flanged, Welded, Threaded
Face-to-face	Per GB12221-2005
Body/bonnet material	WCB, WC9, CF8, CF8M (F46 lined)
Actuator type	Diaphragm, Bellows
Surface coating	Silver gray (Epoxy resin). No coating for stainless steel body.

结构型式

Structural Features
1. Pressure setpoint adjustable on-site within regulation range
2. Spring replacement enables rapid pressure range modification

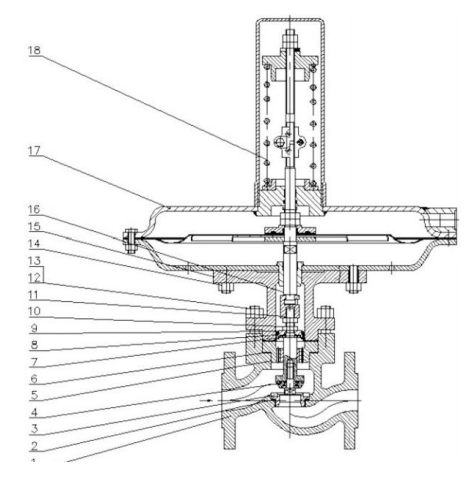

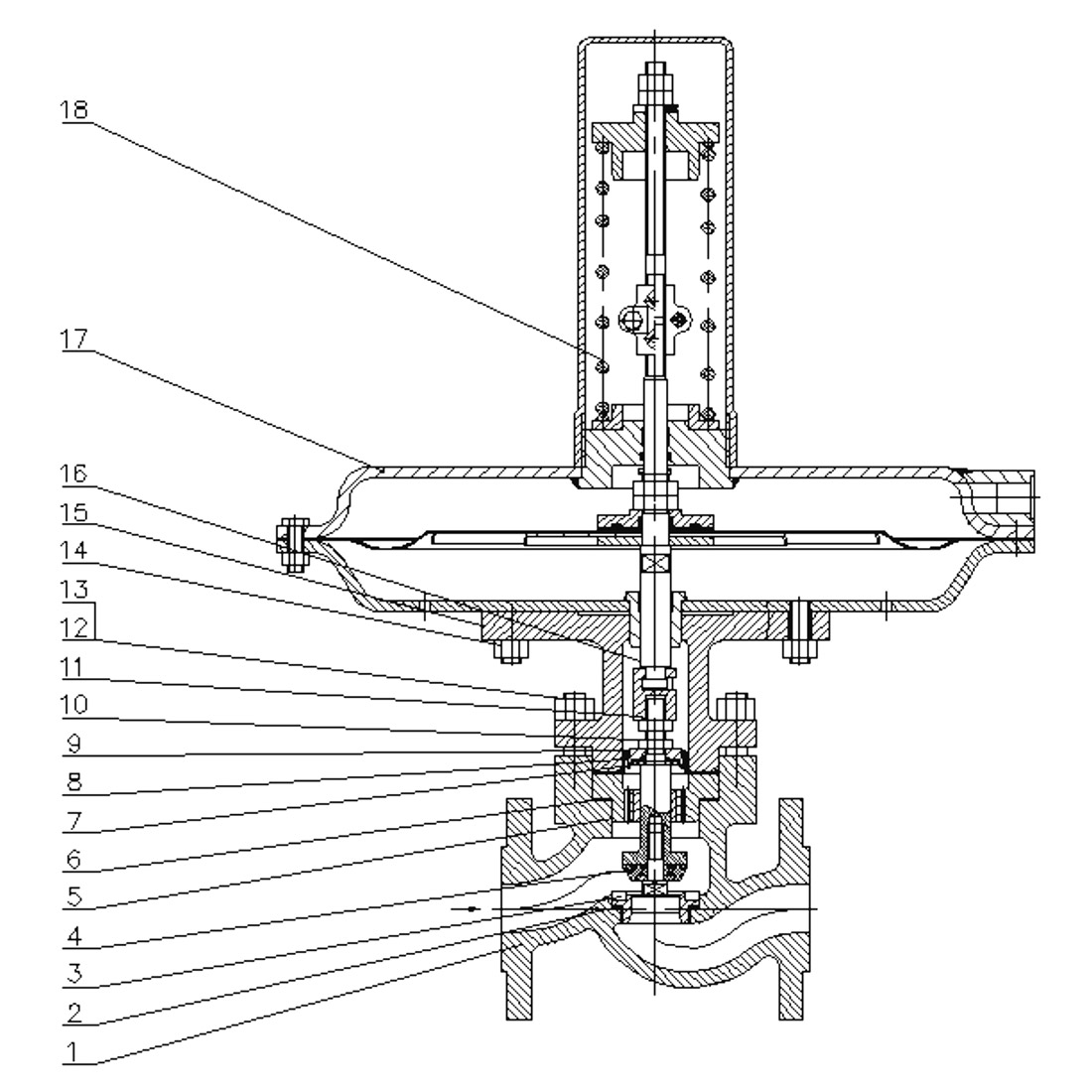

3. ZZVP micro-pressure valve uses rubber diaphragm as pressure balancing element, unaffected by upstream pressure changes. Enhances response speed and regulation accuracy (Fig.B/D/F). No balancing element required for low flow (Fig.E)
4. Packing-free stem seal design minimizes friction with absolute sealing reliability
5. ZZVN micro-pressure double-seated valve adopts self-balancing dual-seat plug for large bore applications (Fig.C)
6. Rubber diaphragm actuator detects minimal pressure variations with high sensitivity and precision
7. Integral shut-off valve prevents contaminants from entering actuator, protects diaphragm/seals from overpressure damage
8. Metal bellows available when upstream pressure >0.1MPa, or for corrosive/high-temperature media

特殊规格

Special inspection	Flow characteristics test, Material inspection (Test report)
Cleaning requirements	Cleanliness requirements, Oil-free, Dehydration treatment
Special specifications	Sand/dust-proof type, Salt corrosion-resistant type, Arctic version, Tropical version, Copper-free, Stainless steel bolts/nuts for atmospheric exposure, Specified coating color
Accessory requirements	Special interfaces, Pressure tap piping included, With pressure gauge
Special media	Oxygen
