YE100P Electric Single-Seated Control Valve

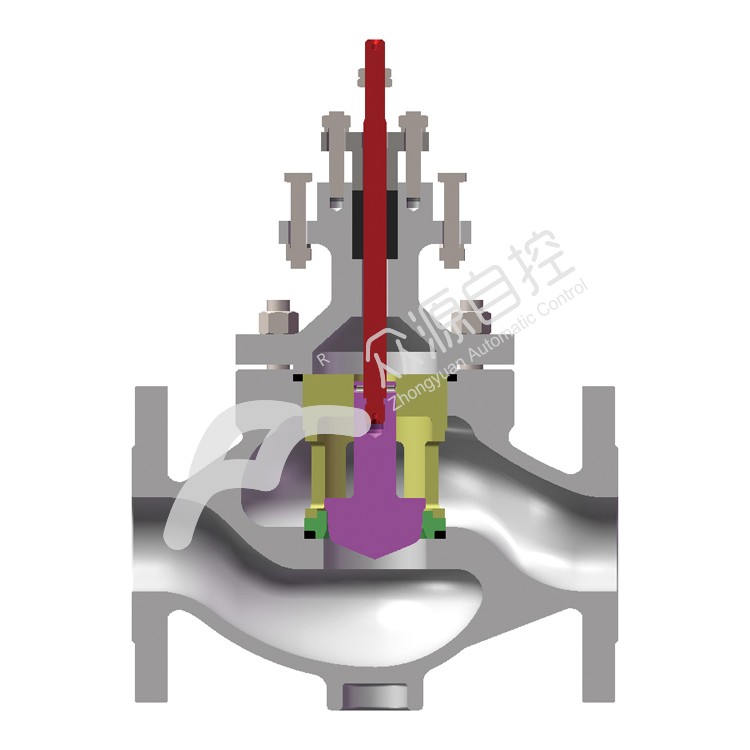

· Compact valve body structure, S-shaped fluid channel with flow guide vane to prevent turbulence

· Low pressure drop, high flow capacity, wide adjustable range, high-precision flow characteristics

· Quick-change valve seat, integrated cage and guide bushing, low leakage

· Simple structure, easy installation and maintenance, suitable for harsh operating conditions

· Equipped with electric actuator: compact structure, small size, high output force

Product Details

	Chinese Standard	American Standard
Quality assurance	ISO9001	ISO9001
Design and manufacture	GB12224-2005	ASME B16.34
Flange standard	GB9113,GB9124.1 HG20592-2009	ASME B16.5
Length of structure	GB/T17213.3	ASME B16.10 ISA S75.03
Inspection and test standard	GB/T4213-2008	ANSI FCI70-2 IEC60534-2-1

Nominal Diameter DN	mm	15	20	25	32	40 50 65
	inch	1/2	3/4	1	1.25	1.5 2 2.5
Nominal Diameter DN	mm	80	100	125	150	200 250 300
	inch	3	4	5	6	8 10 12
Nominal Pressure PN	PN	16, 25, 40, 64, 100(110)
	ANSI	CL150, CL300, CL600
Connection Type	Flanged; Welded
Type	Straight bore single casting ball valve,Unbalance plug
Gland Type	Bolt clamp

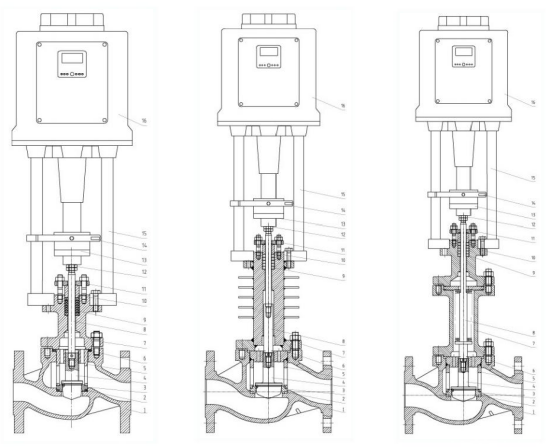

*Bonnet Temperature Range	Standard				-17～+230℃
	High-Temperature Dissipation (G)				+230～+566℃

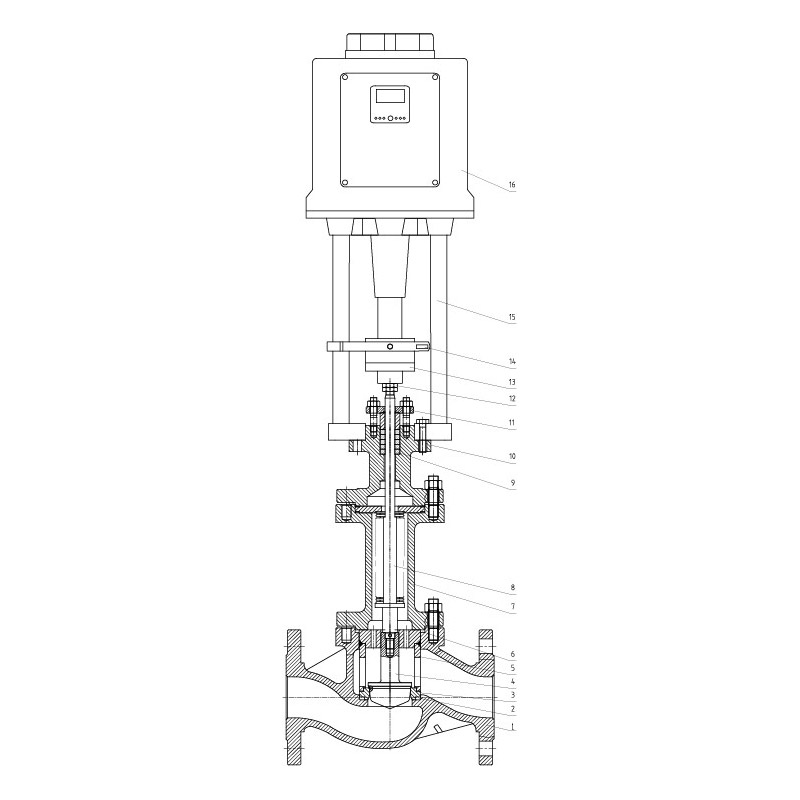

	Extended (D)				-196～-45℃
	Bellows Seal (W)				-45 ～+350℃
Packing	Teflon V-ring, Teflon fiber, Grafoil
Gasket	Graphite composite Gasket、matel wound graphite Gasket、Grooved metal gasket (316 stainless steel)
Painting color	Light curry (Epoxy resin), In the case of stainless steel body, nopainting is standard. Light curry (Epoxy resin group) is standard. In the case of stainless steel body, nopainting is standard.

Flow characteristics	≤DN25	Metal valve seat ring	high accuracy	equal percentage character (%) and linear character (L)
		Soft seat ring		equal percentage character (%) and linear character (L)
	≥ DN32	Metal valve seat ring	high capacity	equal percentage character (%) and linear character (L)
		Soft seat ring
		Metal valve seat ring	high accuracy	equal percentage character(%) and linear character (L)
		Soft seat ring
Adjustable range	50:1(Cv≥0.25)、30:1(Cv≤0.16)
Leakage level	hard sealing:standard Class IV,special Class V soft sealing: Class VI
Fundamental error	Standard:±1.5%;Extended:±2.5%
Backlash	Standard:±1.5%;Extended:±2.5%
Dead zone	Standard:±0.6%;Extended:±1%
Start point deviation	±2%
Rated travel deviation	±2%
