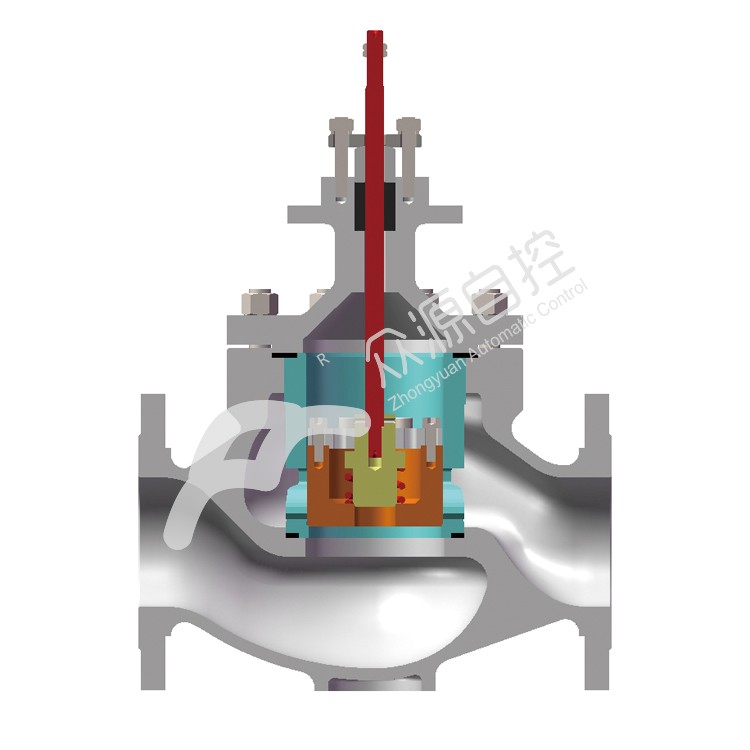

YE200MX Electric Pilot-operated Cage-style Control Valve

S-shaped flow path with integrated flow guide vane ensures low pressure drop, high flow capacity, wide adjustable range (50:1), and precise flow characteristics (±1% accuracy).

Enhanced with a pilot plug for precise low-opening regulation, improving overall control capability beyond standard cage-style valves.

Class V shut-off capability (ISO 5208) with robust sealing, suitable as vent shut-off valve.

High capacity, excellent dynamic stability (per IEC 60534-8-3), and compatibility with harsh operating conditions (-196°C to 650°C).

Compact electric actuator design with high thrust output (up to 80kN), supporting HART/PROFIBUS communication.

Request a Quote

Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Applicable Standards
Valve Body Component Selection
Structural Configuration
Main Performance Parameters

Product Features

S-shaped flow path with integrated flow guide vane ensures low pressure drop, high flow capacity, wide adjustable range (50:1), and precise flow characteristics (±1% accuracy).
Enhanced with a pilot plug for precise low-opening regulation, improving overall control capability beyond standard cage-style valves.
Class V shut-off capability (ISO 5208) with robust sealing, suitable as vent shut-off valve.
High capacity, excellent dynamic stability (per IEC 60534-8-3), and compatibility with harsh operating conditions (-196°C to 650°C).
Compact electric actuator design with high thrust output (up to 80kN), supporting HART/PROFIBUS communication.

Applicable Standards

	Chinese Standard	American Standard
Quality assurance	ISO9001 TS2710J59	ISO9001
Design and manufacture	GB12224-2005	ASME B16.34
Flange standard	GB9113,GB9124.1 HG20592-2009	ASME B16.5
Length of structure	GB/T17213.3	ASME B16.10 ISA S75.03
Inspection and test standard	GB/T4213-2008	ANSI FCI70-2 IEC60534-2-1

Valve Body Component Selection

Nominal Diameter DN	mm	40	50	65	80	100	125	150
	inch	1.5	2	2.5	3	4	5	6
Nominal Diameter DN	mm	200	250	300	350	400	450	500
	inch	8	10	12	14	16	18	20
Nominal Pressure PN	PN	16, 25, 40, 64, 100, 150, 260, 320, 420
	ANSI	CL150, CL300, CL600, 900, 1500, 2500
Connection Type	Flanged: RF, RJ, TG, MFM Welding: sW (40-50); SW (50-600)
Type	Through-type globe valve, Pressure Balanced Plug
Gland Type	Bolt clamp
★Bonnet Temperature Range	Standard				-17 to +230°C
	Heat Dissipation Type (G)				-45 to -17°C, +230 to +566°C
	Extended Type (D)				-196 to -45°C
	Bellows Seal Type (W)				-45 to +350°C
Packing	PTFE V-ring, PTFE carbon fiber, Grafoil
Gasket	Metal wound graphite gasket, Grooved metal gasket (316)
Painting Color	Light coffee (Epoxy resin). No painting for stainless steel body/bonnet.

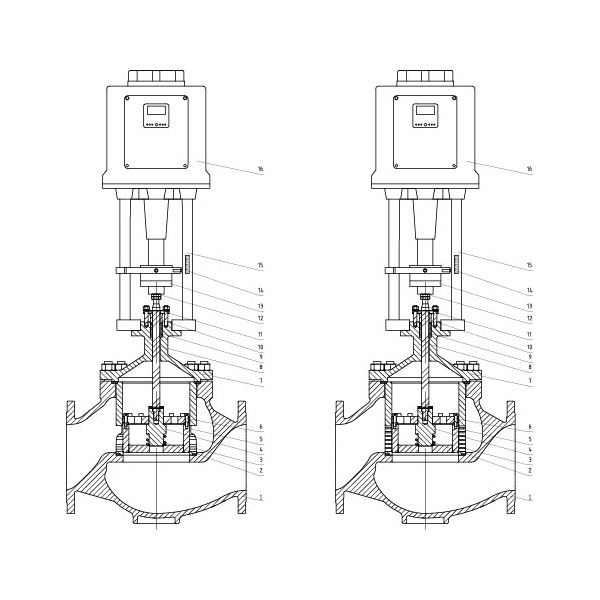

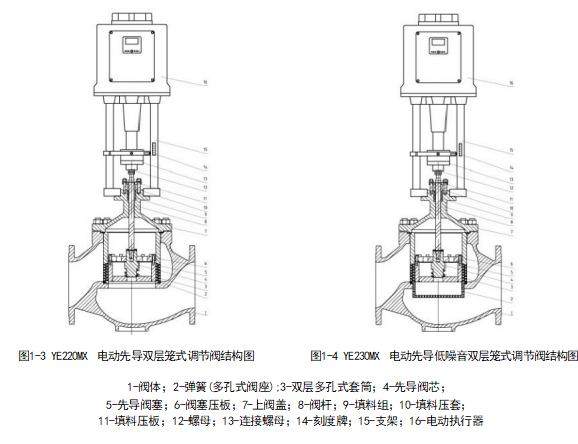

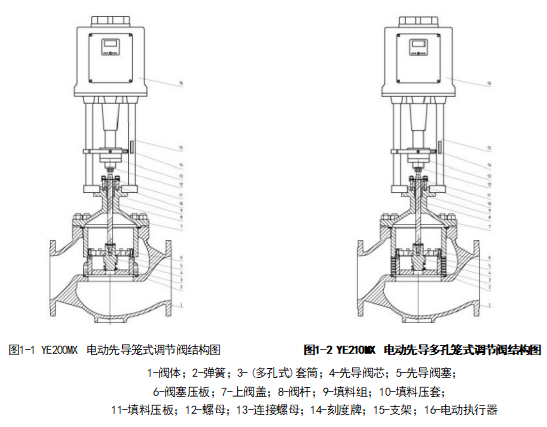

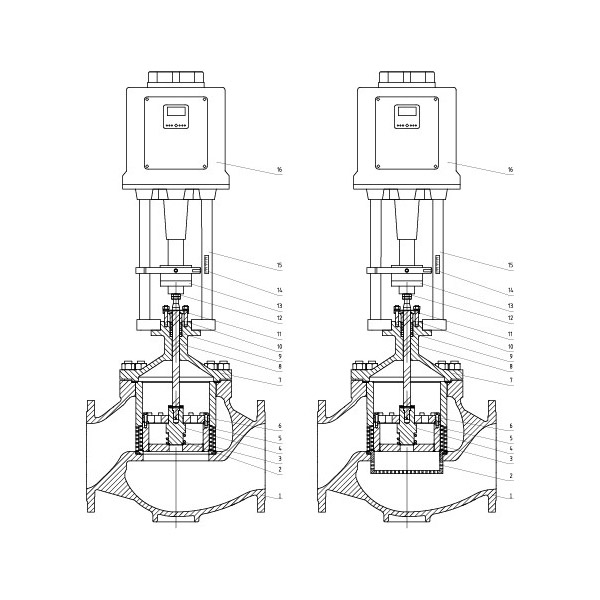

Structural Configuration

Main Performance Parameters

CV Value and Rated Stroke	High Capacity Plug; High Accuracy Flow Characteristic Plug
Flow Characteristics	Metal Seat Ring	High Capacity	Equal Percentage (%) & Linear (L)
	Metal Seat Ring	High Accuracy	Equal Percentage (%) & Linear (L)
Adjustable Range	50:1
Leakage Class	Hard Sealing: Standard Class IV, Special Class V
Fundamental Error	Standard: ±1.5%; Extended: ±2.5%
Backlash	Standard: ±1.5%; Extended: ±2.5%
Dead Zone	Standard: ±0.6%; Extended: ±1%
Start Point Deviation	±2%
Rated Travel Deviation	±2%
