Square Hygienic Flange Ball Valve

Three-way ball valves are primarily used to switch flow paths while cutting off or connecting media. The square three-way ball valve features an widened contact surface between the body seal ring and the ball, avoiding the small contact area of standard three-way ball valve body seals. Combined with the lack of positioning design in standard three-way ball valves, when the valve is opened/closed, the ball shifts from the sealing surface, causing incomplete closure and internal leakage. If cost is not the primary concern, square three-way ball valves are one of the optimal choices for three-way process pipelines.

Request a Quote

Support

Download PDF

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Applicable Standards
Structural Configuration
Main Performance Parameters

Product Features

• Body construction: Casting/forging processes. Connections: Flange/weld/sanitary/threaded
• 90° rotation achieves full open/close operation
• Elastic lip-seal technology ensures zero leakage with self-compensating mechanism for extended service life
• Seal materials: PTFE/reinforced PTFE/hard-faced structures for various working conditions
• Hardened and polished ball surface ensures smooth wear-resistant flow path
• Full-bore flow path matches pipeline ID for minimal resistance
• Internal stem design enhances safety/rigidity
• Shearing action suits fibrous/particulate media: pulp, wastewater
• Optional anti-static device per request
Applicable Standards

• Design/Manufacturing: GB/T 12237-2007
• Flange standards: GB/T, JB/T, HG/T, API, ANSI, DIN, JIS, JPI, BS
• Face-to-face: GB/T 12221-2005
• Testing/Inspection: GB/T 13927-2008
• Actuation: Manual, Optional (Pneumatic, Electric)
• Nominal diameter: DN15-DN100 ISO19.05-101.6
• Pressure rating: 1.0MPa, 1.6MPa
• Temperature: Domestic PTFE -10-100°C/Imported PTFE -10-150°C
• Media: Gas, Water, Oil
• Optional drives: Manual, Electric, Pneumatic, Hydraulic
• Connection: Hygienic flange
• Body material: CF8(304), CF3(304L), CF8M(316), CF3M(316L)

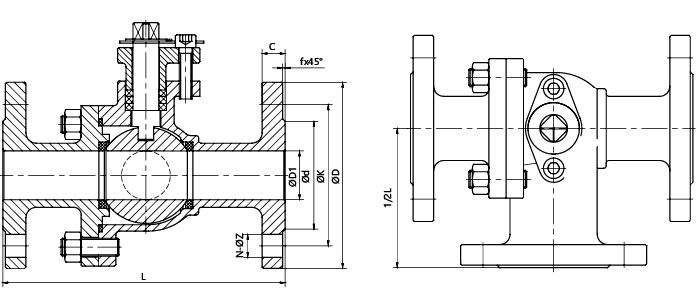

Structural Configuration

Main Performance Parameters

Main Parts Materials

Body	WCB	ZG1Cr18Ni9Ti	CF8	CF3	ZG1Cr18Ni12Mo2Ti	CF8M	CF3M
Ball/Stem	1Cr13	1Cr18Ni9Ti	304	304L	1Cr18Ni12Mo2Ti	316	316L
Seat	PTFE+Glass Fiber Reinforced PTFE/PPL
Gasket	PTFE/Stainless Steel+Flexible Graphite
Stem Seat	PTFE/Stainless Steel+Flexible Graphite
Packing	Reinforced PTFE+Flexible Graphite
Gland	WCB	1Cr18Ni9Ti	304	304L	1Cr18Ni12Mo2Ti	316	316L
Temperature	Domestic PTFE: -10~100℃ Imported PTFE: -10~100℃
Medium	Water/Steam/Oil	Nitric Acid		Strong Oxidizing Media	Acetic Acid		Urea

Series DIN/A Series of DIN

Spec.	Pipe OD	d	D	K	N-M	T	L	F	H
DN15	Φ19×1.5	16	79	67.5	4-Φ7	10	135	135	77
DN20	Φ23×1.5	20	79	67.5	4-Φ7	10	144	135	78
DN25	Φ25×1.5	25	79	67.5	4-Φ7	10	169	135	95
DN32	Φ32×1.5	31	79	67.5	4-Φ7	10	192	181	113
DN40	Φ40×1.5	37	88	75	4-Φ7	10	192	181	113
DN50	Φ53×1.5	50	100	87.2	4-Φ9	10	213	181	121
DN65	Φ70×2	66	121	106	4-Φ9	10	241	181	135
DN80	Φ85×2	81	140	125	4-Φ9	11	288	336	140
DN100	Φ104×2	100	162	147.5	6-Φ9	11	329	436	158

Second Series ISO

Spec.	Pipe OD	d	D	K	N-M	T	L	F	H
3/4"	Φ19.05×1.5	16.05	79	67.5	4-Φ7	10	144	135	78
1"	Φ25.4×1.5	22.4	79	67.5	4-Φ7	10	169	135	95
1.25"	Φ31.8×1.5	28.8	79	67.5	4-Φ7	10	192	181	113
1.5"	Φ38.1×1.5	35.1	88	75	4-Φ7	10	192	181	113
2"	Φ50.8×1.5	47.8	100	87.2	4-Φ9	10	213	181	121
2.5"	Φ63.5×1.5(2)	60.5(59.5)	114	99	4-Φ9	10	241	181	135
3"	Φ76.2×2	72.2	130	115	4-Φ9	11	288	336	140
3.5"	Φ88.9×2	85	140	125	4-Φ9	11	288	336	140
4"	Φ101.6×2	97.6	162	147.5	6-Φ9	11	329	436	158
