Three-Piece Ball Valve body adopts precision vacuum wax mold casting technology with optimized structure and aesthetic design. Elastic sealing structure ensures reliable sealing and smooth operation. Reverse-sealed bottom-loading stem design prevents stem ejection during abnormal cavity overpressure.

Three-Piece Ball Valve bodies feature ISO high platforms and locking mechanisms. Compatible with pneumatic/electric actuators, valve position feedback, mechanical/smart positioners to meet industrial automation requirements.


Request a Quote
Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

  • Product Features
  • ​Applicable Standards
  • ​Structural Configuration
  • Special Specifications

  • Product Features

    Structural Features

    • Low fluid resistance with equivalent coefficient to same-length pipelines

    • Simple structure, compact size and lightweight

    • Reliable sealing with domestic/imported PTFE seats, suitable for vacuum systems

    • 90° quarter-turn operation enables quick open/close

    • Maintenance-friendly design with replaceable seals

    • Sealing surfaces isolated from media in fully open/closed positions

    • Standard semi-encapsulated seals; Full-encapsulated option available for special processes


  • ​Applicable Standards

    Standard Specifications

    • Actuation: Manual/Configurable (Pneumatic/Electric)

    • Nominal Diameter: DN10-DN100 ISO12.7-101.6

    • Pressure Rating: 1.6MPa

    • Temperature Range: Domestic PTFE -10~100℃/Imported PTFE -10~150℃

    • Media Compatibility: Gas/Water/Oil

    • Actuator Options: Manual/Pneumatic/Electric

    • Connection Standard: Sanitary Flange

    • Body Material: CF8 (304)/CF3 (304L)/CF8M (316)/CF3M (316L)


  • Structural Configuration


  • Special Specifications

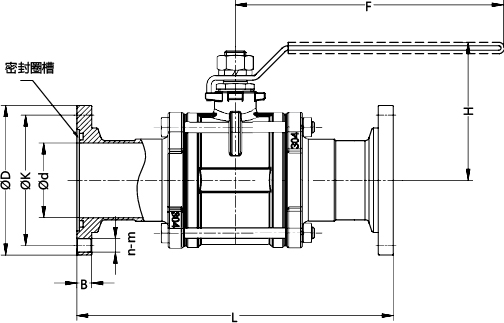

    Pipe OD dDKn-mL BHF
    Φ12.7×1.5 9.77967.54-Φ7120 1048 95
    Φ19.05×1.5 16.057967.54-Φ7120105595
    Φ25.4×1.522.47967.54-Φ71331067.5110
    Φ31.8×1.5 28.87967.54-Φ71401077145
    Φ38.1×1.535.188754-Φ71581083165
    Φ50.8×1.547.810087.24-Φ91981092180
    Φ63.5×259.5114994-Φ920610100180
    Φ76.2×272.21301154-Φ924211140240
    Φ88.9×284.91401254-Φ927411145240
    Φ101.6×297.6162147.56-Φ933011170320
