Three-Piece Internally Threaded Ball Valve

Three-piece ball valves offer multiple connections: internal threads, industrial heavy-wall welding, sanitary thin-wall butt welding, sanitary quick-connect, sanitary flanges, national standard flanges.

Three-piece ball valves use precision investment casting for compact structure. Spring-loaded seats ensure reliable sealing with low torque. Bottom-mounted stem design prevents blowout under overpressure.

Standard ISO top pads allow installation of pneumatic/electric actuators. Optional position feedback and smart positioners meet automation requirements.

获取报价

咨询客服

PDF下载

产品详情

流体掌控间，众源展非凡

产品特点
应用标准
结构型式
主要性能指标

产品特点

Structural Features
• Low flow resistance coefficient equivalent to equal-length piping
• Simplified compact design with minimized dimensions/weight
• Reliable sealing using domestic/imported PTFE seats (vacuum system compatible)
• 90° quarter-turn operation enables rapid open/close cycling
• Maintenance-friendly construction with removable seal assemblies
• Full-open/close positions isolate sealing surfaces from media erosion
• Seal configurations: Standard partial encapsulation; Optional full encapsulation
应用标准

Standard Specifications
• Actuation: Manual/ISO 5211 top-mounted (Pneumatic/Electric)
• Nominal Diameter: DN6-100 ISO12.7-101.6mm
• Pressure Rating: PN16/Custom higher pressures
• Temperature Range: Domestic PTFE -10~100℃/Imported PTFE -10~150℃
• Media Compatibility: Gas/Water/Oil
• Actuator Options: Manual/Pneumatic/Electric
• Connection: Internal thread (BSPP/NPT)
• Body Material: Cast steel/CF8 (304)/CF3 (304L)/CF8M (316)/CF3M (316L)
结构型式
主要性能指标

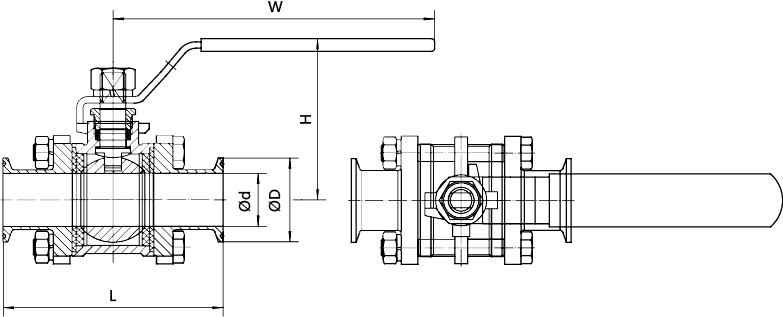

Size ID L H W
DN NPS
6 1/4" 11.5 67 50 95
10 3/8" 12.5 67 50 95
15 1/2" 15 71 55 95
20 3/4" 20 81 65 118
25 1" 25 86 74 144
32 1-1/4" 32 110 82 155
40 1-1/2" 38 115 93 158
50 2" 50 138 100 180
65 2-1/2" 65 180 126 235
80 3" 80 207 137 235
100 4" 100 264 172 310
