Linear Valve Position Transmitter

• Easy installation directly on valves
• Switch cam auto-adjusts open/close positions per stroke
• LED indicates operational readiness and position feedback
• Splash-proof compact enclosure with transparent window
• Expandable feedback signals for wide applications

Request a Quote

Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Structural Configuration
Main Performance Parameters

Product Features

Directly mounted on valves to provide real-time position feedback with electrical remote reporting to control systems. Built-in LED delivers clear optical position feedback for status recognition.

• Easy installation directly on valves
• Switch cam auto-adjusts open/close positions per stroke
• LED indicates operational readiness and position feedback
• Splash-proof compact enclosure with transparent window
• Expandable feedback signals for wide applications

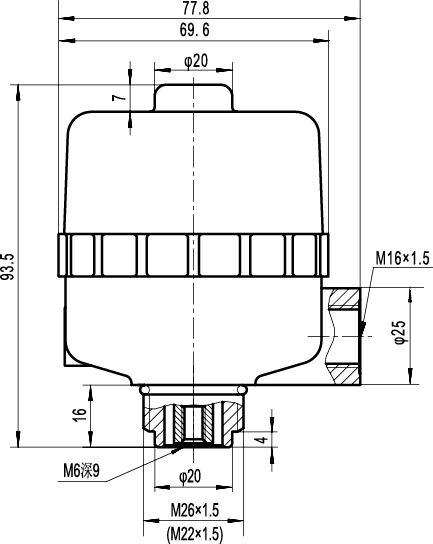

Structural Configuration
Main Performance Parameters

Model Ambient Temperature Mounting Interface Cable Port Voltage Power Stroke Range (Adjustable)
ALS-010M2 -20℃~60℃ M26×1.5
(M22×1.5) M16×1.5 DC12-48V DC12V-0.11W
DC24V-0.45W
DC48V-1.8W 10-30mm

Linear Valve Position Transmitter

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features

Structural Configuration

Main Performance Parameters

Related Products

Zhongyuan Valves: Your Guardian of Fluid Safety

Model	Ambient Temperature	Mounting Interface	Cable Port	Voltage	Power	Stroke Range (Adjustable)
ALS-010M2	-20℃~60℃	M26×1.5 (M22×1.5)	M16×1.5	DC12-48V	DC12V-0.11W DC24V-0.45W DC48V-1.8W	10-30mm
