Right-Angle Thread Pneumatic Valve

• Actuation: Single-acting, Double-acting

• Line Pressure: 0-0.7MPa

• Control Pressure: 0.35-0.8MPa

• Body Material: CF8 or CF8M

• Sealing Material: PTFE

• Media Temperature: -10~120℃

Request a Quote

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Structural Configuration
Main Performance Parameters

Product Features

• Actuation: Single-acting, Double-acting
• Line Pressure: 0-0.7MPa
• Control Pressure: 0.35-0.8MPa
• Body Material: CF8 or CF8M
• Sealing Material: PTFE
• Media Temperature: -10~120℃

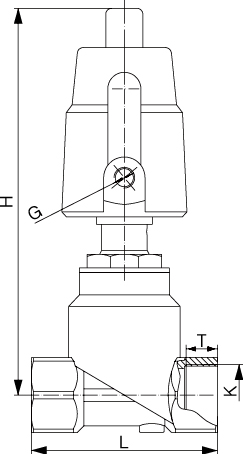

Structural Configuration

Main Performance Parameters

Size	Actuator	H	L	K	T	G
DN15	27	113	78	G1/2"	14	G1/8"
DN15	32	117
DN15	40	150
DN15	50	167
DN20	50	170	74	G3/4"	16
DN25	63	182	89	G1	20
DN25	63	213	89	G1	20
DN32	63	231	109	G1 1/4"	20
DN40	63	234	112	G1 1/2"	22
DN50	63	248	145	G2"	26
DN32	80	246	109	G1 1/4"	20	G1/4"
DN40	80	250	112	G1 1/2"	22
DN50	80	265	145	G2"	26
DN32	90	281	109	G1 1/4"	20
DN40	90	285	112	G1 1/2"	22
DN50	90	302	145	G2"	26
